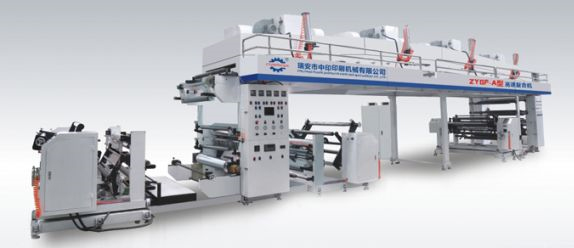

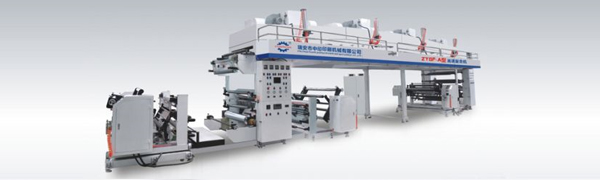

ZYGF-A Dry Laminating Machine
Main technical parameters：
| Laminating width： | 500-1000mm |
| Machine speed： | 150m/min |
| Laminating speed： | 20m-130m/min |
| 1st unwinder dia： | Ø600mm |
| 2nd unwinder dia： | Ø600mm |
| Rewinder dia： | Ø800mm |
| Paper core： | Ø76mm (inner dia.) Ø92mm (outter dia.) |
| Unwind and rewind shaft： | 1st , 2nd unwinder and rewinder shafts are air expanding shafts |
| Coating roller diameter Ø 192mm, screen： | 120 LPI |
| Tension control： | auto adjustment |
| Oven length： | 9000mm |
| Inner oven temperature： | 0-70℃(room temperature:20℃) |
| Drying method： | Electric heating |
| Laminating roller diameter： | Ø320mm |
| Heating method： | oil heating, 0-100℃(room temperature:20℃) |
| Laminating pressure： | 2000kg |
| Total power： | 58kw |
| Overall dimension： | 11000x2000x3500 mm |
| Weight： | 800 type:5T, 1000 type:6T |
