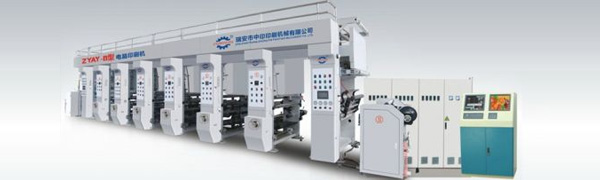

ZYAY-1000B 8 Colors Gravure Printing Machine
Main technical parameters:
Printing number:
|
8 color
|
Max. printing width:
|
1000mm
|
Max. mechanical speed:
|
150m/min (Cylinder ¢170mm)
|
Max. printing speed:
|
130m/min (Cylinder ¢170mm)
|
Plate cylinder diameter:
|
¢120-¢330
|
Diameter of unwind and rewind units:
|
¢600mm
|
Register accuracy:
|
±0.12 mm (Longitudinal and transverse )
|
Tension control range:
|
3-25kg
|
Tension control accuracy:
|
0.3kg
|
Paper core:
|
inner ¢ 76, outer ¢ 92mm air expanding shaft
|
Impression pressure:
|
380kg
|
Doctor blade transverse movement:
|
±5mm
|
Drying method:
|
electricity heating
|
Electricity consumption for drying:
|
120KW
|
Air source Minimum pressure:
|
0.8Mpa
|
Cooling water consumption:
|
5T/H
|
Main motor power:
|
15kw
|
Cooling water consumption:
|
about 20t/hour (3kg/cm2)
|
Size of overall machine:
|
15000LX3200WX2500H
|
weight:
|
about 16000KG
|
Printing material:
BOPP /OPP /CPP:
|
15-60μm,PET 12-60 μm,NY PA 15-60μm,Cellophane 20-30μm
|
PVDC/PO/PVC:
|
40-70μm, PE 30-100μm, Paper roller:30-70g/m2
|
