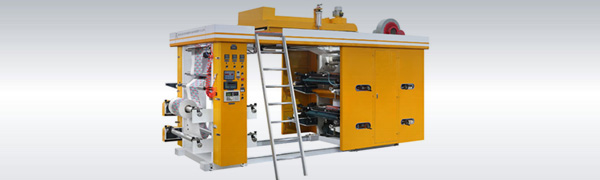

High speed flexo printing machine

Specifications:
this is new advanced flexo printing machine with high speed 100m/min ,belt control ,helix gear ,auto tenson ,simulated EPC

it is newsly advanced flexo printing machine. which only our factory making it.

it has high speed with 100m/min.

closed double side doctor blade

heat pipe heating

helix gear instead of the traditionl straight gear

double rewinding and unwinding with auto tension and magnetic powder tension

3 inch air shaft both in unwind and rewind

Main technical parameters:
Printing Width: 600mm, 800mm, 1000mm, 1200mm, 1400mm, 1600mm, 1800mm, 2000mm
Colors: 8 (PC:8+0,7+1,6+2,5+3,4+4)
Printing Length: 190 mm-1000 mm(7.5"-40")
Machine Speed: 110m/min
Max. Printing speed: 100m/min
Anilox roller: Metal:10DK-120DK(Germany)
Registering accuracy: V ±0.25mm,H: ±0.25mm
Unwind/Rewind Diameter: ф600
Main motor: 5.5kw, 5.5kw, 7.5kw, 7.5kw, 11kw, 11kw, 15kw, 15kw
Rewind Motor: 1.5kw, 2.2kw
