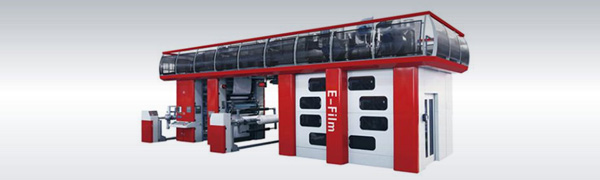

CI Flexo Printing Press Machine
Main specifications：
| Substrate thickness： | 15-70μm |
| Max. substrate width： | 1250mm |
| Max. print width： | 1200mm |
| Max. print units： | 8 colors |
| Register precision： | ±0.1mm |
| Print repeat length： | 400-800mm |
| Tension control range： | 100～600 N(full web) |
| Plate thickness： | 1.7mm, 1.14mm |
| Adhesive tape thickness： | 0.38mm, 0.5mm (direct pasting) |
| Max. mechnical speed： | 300m/min |
| Printing speed： | 250m/min, subject to the following factors: Print plate perimeter, Ink and solvent, Print image and quality |
| Web direction： | Print unit is on the right of rewind unit(operation side) |
| Ink type： | Water based ink or solvent based ink |
| Drive method： | Servo drive |
| Register control： | Servo control |
| Power supply： | AC400V ±5%, 50HZ |
| Max. un/rewind diameter： | 800mm |
| Splice method： | Non-stop automatic splice |
| Heating & drying system： | Steam heating (optional electrical heating, natural gas heating, thermal oil heating, etc) |
| Total motor power： | 195KW(normally 65% usage) Excluding electrical heating |
| Max. noise： | Below 85Db |
| Suggested operation temperature： | 10-35℃ |
| Relative humidity： | 30-80% (20℃ as reference) |
| Altitude： | Max. 1000m |
