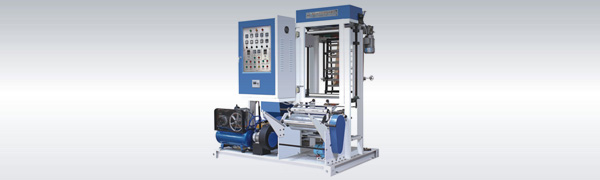

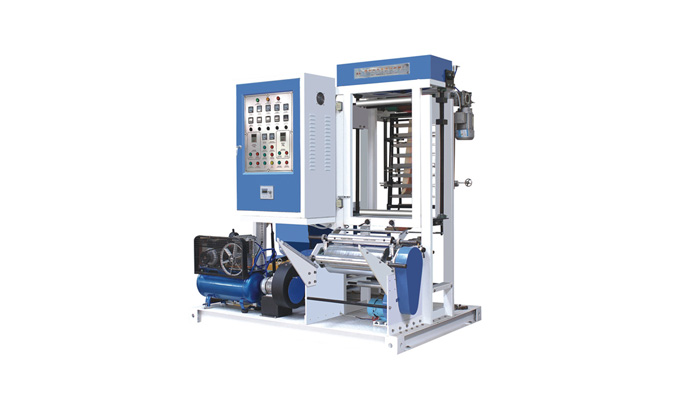

SJ-M 45 Mini Film Blowing Machine
Main technical parameters：
| ScrewΦ45 L/D28： | 1 |
| material： | 38 CrMoALA |
| Max Film Width： | 550mm |
| Single-side thickness of film： | 0.01-0.10mm |
| Max.output： | 25-30kg/h |
| Two cooled blower of screw barrel(180w) | |
| Heater circle： | stainless steel ,iron covering |
| Hard tooth surface gearbox133# (China brand) | |
| Diehead (die changer) Φ60mm;Φ80mm, hard silver plating | |
| Aluminum air ring： | Φ600mm |
| Main motor： | 11kw (China brand) |
| Inverter： | 11kw (China brand) |
| Inner electric of cabinet： | (China brand) |
| Temperature controller5 zones： | (China brand) |
| Fan blower： | 1.5kw |
| Friction single winder, bright steel roller Φ220, 2 pcs air shaft | |
| Torque motor on the winder | |
| Lift up and down： | 1 meter |
| Haul-off motor： | 0.75kw |
| 3 pcsroller for the up traction with pneumaticcontrol(Include Embossing Roller) | |
| Gusset arm & A type frame： | wooden |
| Height of the machine： | 2.5m |
| Weight： | 1.5T |
