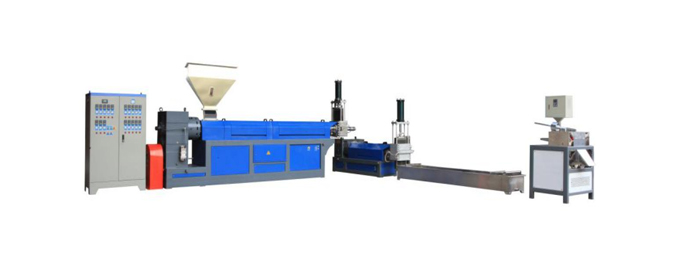

Plastic recycle extruder machine
Model：SH-140/140-P
A. First Extruder：
| Screw Diameter： | Φ140mm |
| Screw Length： | 3600mm |
| L/D ratio： | 25:1 |
| Vented style： | Single(Double) Vent |
| Material of Screw and barrel： | High-quality nitride steel 38CrMoAlA. Nitride hardness is HV800-900. Nitriding Depth is 0.4-0.7mm |
| Gear Box： | 315#（Equipped with cooling device） |
| Motor Power： | 75kw-4 / 55kw-6 |
| Mode of Motor control： | star triangle step - down start |
| Heating Zones/Power： | 10 zones/60kw |
| Mode of heater ring： | before first vent is ceramics heater ring |
| Screen Change Style： | Hydraulic Double Screen Change （Screen Size:300mm×300mm） |
| Feed port： | 45# Steel alloy processing |
B. The Second Extruder
| Screw Diameter： | Φ140mm-A Model |
| Screw Length： | 1800mm |
| L/D ratio： | 12:1 |
| Vented style： | Single Vent |
| Gear Box： | 200#（Equipped with cooling device） |
| Motor Power： | 18.5kw-4 |
| Heating Zones/Power： | 5 zones/30kw |
| Mode of heater ring： | ordinary heater ring |
| Screen Change Style： | Hydraulic Double Screen Change （Screen Size:300mm×300mm） |
C. Ancillary equipment
| Cooling device： | 3.0m stainless steel cooling tank |
| Cutter device： | 5.5kw inverter(ALPHA brand) 24 knives cutter |
| Hydraulically actuated system： | Double valve hydraulic station,power is 3.75kw |
| Material inlet： | 800*800 high material inlet： |
| Electric Panel： | Single electric panel(15 heating zones, No.1 Stage is 10 Zones，No.2 Stage is 5 Zones), Digital temperature control meter adopt Yuyao, AC Contactor adopt Zhengtai, (3-PHASE, 50mm^2 Copper Core, 400A air break by customer) |
| Total power： | 195kw |
| Tool Box： | Tool Box one set, heater ring 4pcs and heater panel 6pcs. |
| Suitable material(flake)： | ABS/PS/PP/PE etc |
| Capacity： | ABS/PS:300-350kg/h;PE/PP:250-300kg/h |
