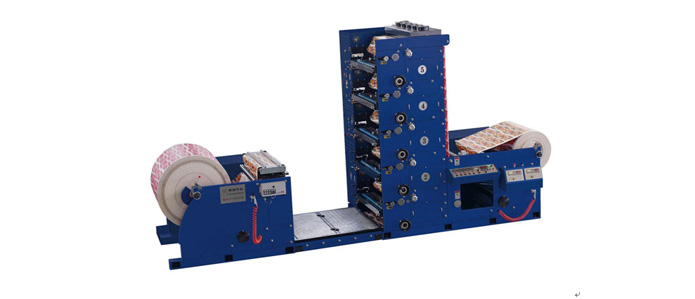

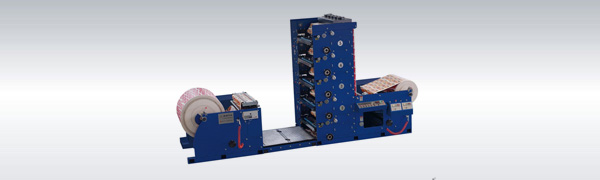

Station for 5-color flexo printing machine:
1.One mounting machine
2.One anilox roller for each group (LPI is optional)
3.Three sets printing rollers (3*5=15)
4.One unwinding tension controller (Mitsubishi Japan)
5.One rewinding tension controller (Mitsubishi Japan)
6.Hydraulic unwinding/rewinding loader
Main technical parameter:
Model:
|
RY850-5B
|
Printing speed:
|
50m/min
|
Printing color:
|
5colors
|
Max. Web width:
|
860mm
|
Max. Printing width:
|
850mm
|
Max. Unwinding diameter:
|
1400mm
|
Max. Rewinding diameter:
|
1400mm
|
Printing girth:
|
250-580mm
|
Precision of registration:
|
±0.15mm
|
Dimensions:
|
2500*1350*3100(mm)
|
Machine weight:
|
About 3500kg
|
