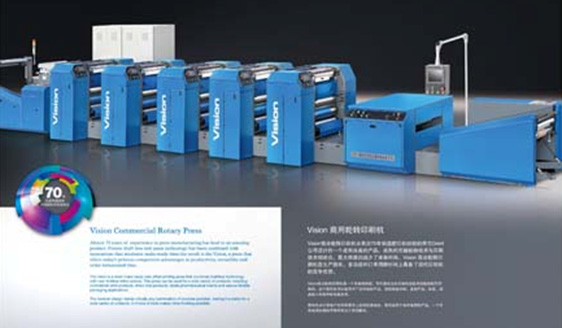

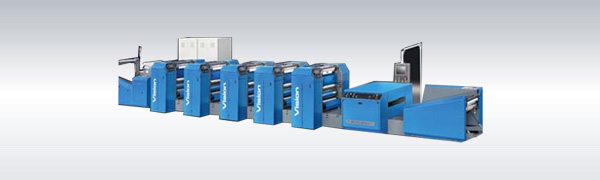

Vision Commercial Rotary Press

The vision is a short-make-ready web offset printing press that combines shaftless technology with near linmitless inline options. This press can be used for a wide variety of products, including commercial print products, direct mail products, labels,pharmaceutical inserts and various flexible packaging applications.

The modular design makes virtually any combination of modules possible, making it suitable for a wide variety of products. A choice of tools makes inline finishing possible.

The unequaled solution for:
  Commercial printing
  Direct mail
  (wrap around) labels
  Security printing
  Lottery tickets
  Pharmaceutical inserts
  Busimess forms
  -Paper Roll
  -unit sets cut sheet laser forms

  Additional units
  Blanket washing system
  Romote ink control
  Register control
  Web video system
  UV curing system
  Flexo unit
  Screen printing unit
  Rotogravure unit
  Hot foil stamping unit
  Laminating unit
  Numbering unit
  Cooling units with uv curing
  Hot air drayer for water based or solvent based inks
  Non-stop splicers
  Corona unit

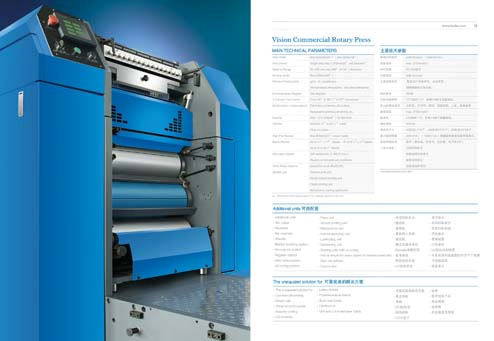

Technical detail Vision
Web width: Max 520mm(20 ½”), min.200mm(8”)
Roll unwind: Single web,max.1,270mm(50”)roll diameter”
Material range: 20-350 microns(.008”-0.14”) thickness
Printing width: Max.508mm(20”)
Primary printing units: up to 12, variable size
Wet/waterless lithographic
Dry offset,letterpress
Circumferential register : 360 degrees
3 cylinder print inserts: From 16” to 28-1/3”in1/6”increments
Multifunction module options: File holes,numbering ,die cutting ,flexographic printing,varnishing ,etc.
Rewind : Max.1,270 mm(50”) roll diameter
Sheeter: Variable, 4” to 28-1/3”cutoff
Chip cut option
High pile stacker: Max.800mm(31”) stack height
Batch stacker: A3 or 11”*17” sheets
A4 or 8½”×11”sheets
A5 or 5½ ×8½”sheets
Max.rated speed: 300 meters/min.,(1,000 ft./min.)
Rewind or fold,optimum conditions
Other press options: Dryer(UV,hot air,IR,EB,HF)
(partial list): Gravure print unit
Rotary screen printing unit
Digital printing unit
Adhesive or coating applicators
