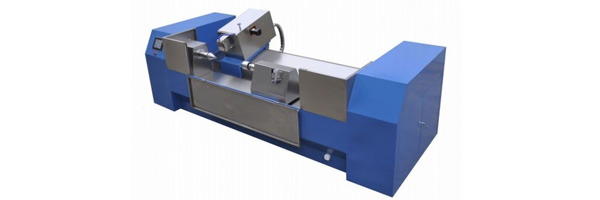

Gravure Cylinder Chrome Polishing Machine

GP-350 X 1400Chrome polishing machine is designed for polishing process on

Main technical parameters:
Cylinder Diameter: Φ90-350mm
Cylinder Length: 300-1400mm
Cylinder rotation speed: 60-300rpm
Polishing head to-and-fro-speed: 500-800mm/min
Polishing head forward speed: 380-410mm/min
Main shaft rotation speed: 25-75rpm
Polishing head oscillation frequency: 10-35hz
Tailstock movement speed: 1200-1300mm/min
Dimension(L x W x H): 3600 x 1600 x 1200mm
Power Supply: 4.5kw
Weight: 2600kg
Customer Responsibility: 380/440VAC,3 Phase; Air compressor
