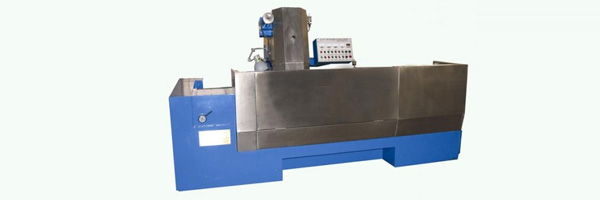

Rotogravure Cylinder Grinding Machine

This series of machines is for the pre-processing to the gravure cylinder which is for the printing on plastic film, textile and paper before it is engraved .It is equipped with pneumatic drives for grinding head ,aoto tailstock self-locking system ,ballscrew linear guide way driving structure, 3 frequency converting and transmission motors (cylinder rotation ,grinding stone rotation speed and grinding head movement ) to achieve high efficiency,high precision,easy operation and convenient maintenance registration.


Main technical parameters:
Cylinder diameter: φ108-350 mm
Cylinder length: 400-1300 mm
Cylinder rotation speed: 60-300 rpm
Grinding head to-and-fro speed: 520-800 mm/min
Grinding head up/down speed: 300 mm/min
Grinding head rotation speed: 500-1100 rpm
Pressure adjustment range: 0-60 kg
Dimension(L x W x H): 3300x1800x1900mm
Power Supply: 9.5 KW
Weight: 4500 KG
Max.cylinder weight: 150 KG
Accessories: 1 cone; 3 pcs stone with adhesive; 6 grinding stone trays
Option: Fittings for installing cylinder
Customer Responsibility: Air compressor(2kg/cm2)
